Overview:

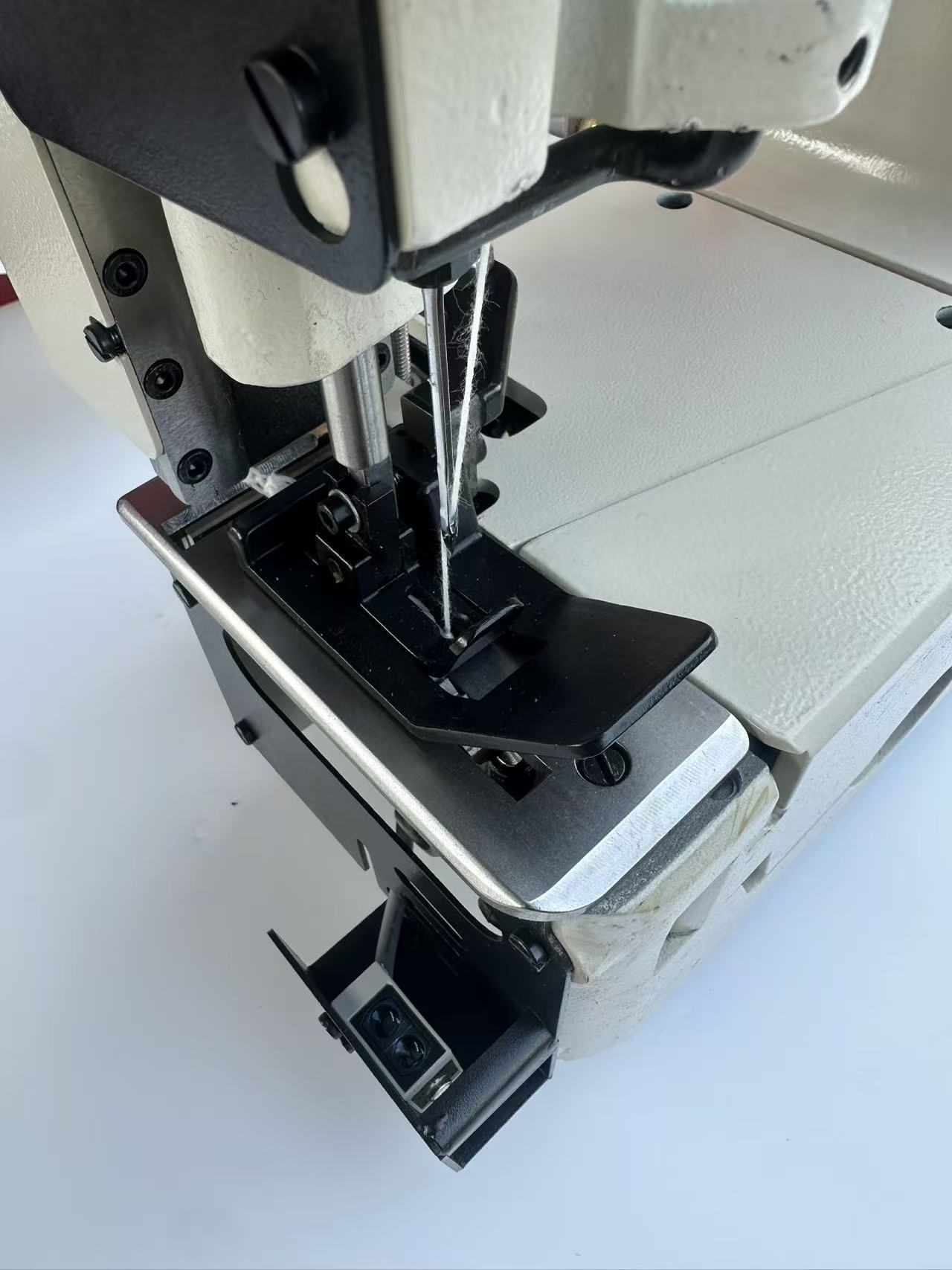

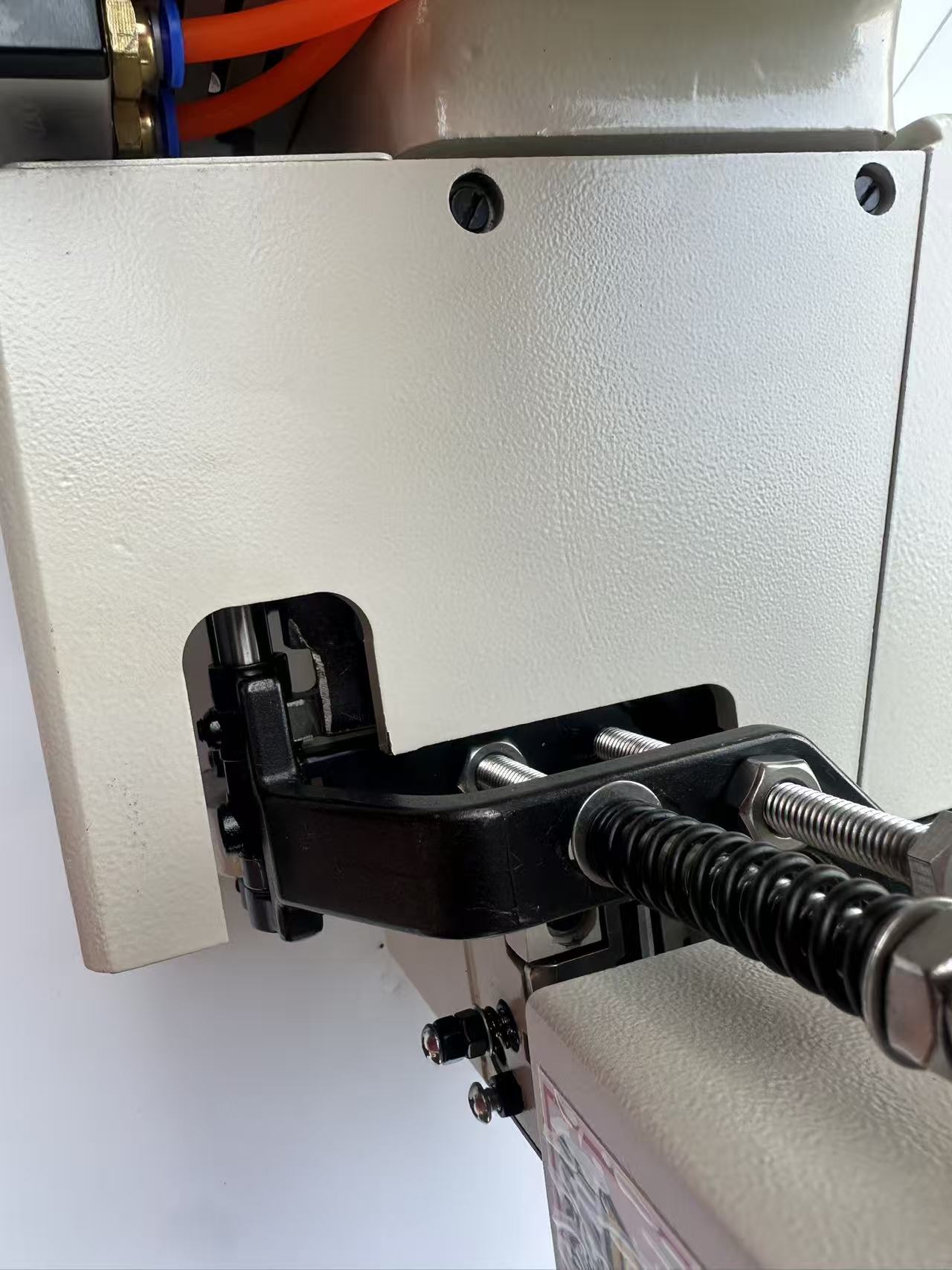

The GK35-6AS Fully Automatic Laminated Bag Sewing Machine integrates automatic start, automatic stop, and automatic thread cutting. Based on the original GK35-6A automatic bag sewing machine, the cutter structure has been improved with a concealed adjustable cutter capable of cutting wide crepe paper tape. The cutter position can be adjusted, reducing the frequency of replacement caused by cutter wear. The GK35-6AS features strong and reliable feeding performance and is especially suitable for double-sided laminated woven bags or folded-edge bags that may slip or experience feeding delays during sewing.

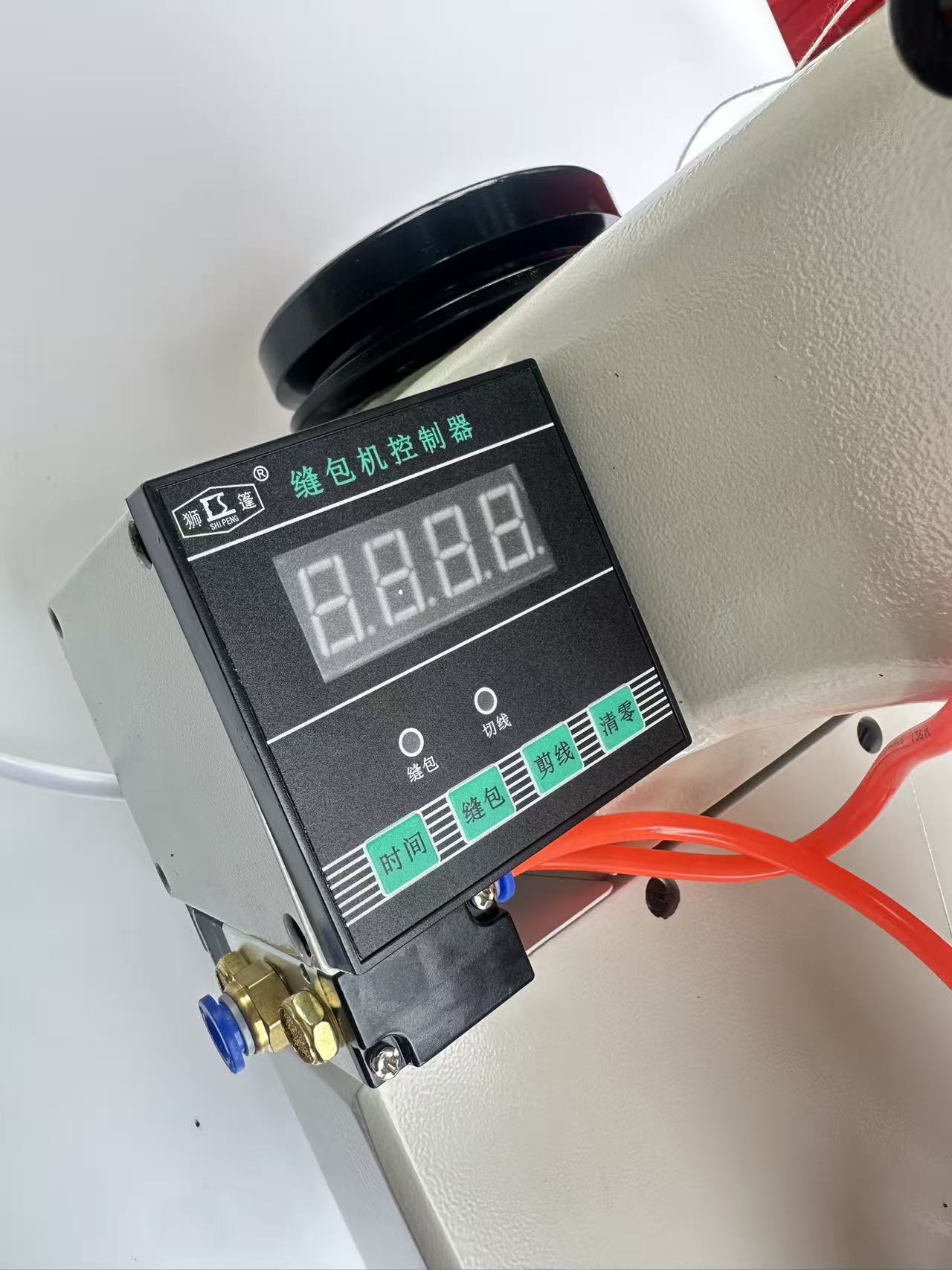

The machine is equipped with a photoelectric sensor, pneumatic thread-cutting device, and controller. The photoelectric sensor and controller automatically control machine start/stop and thread-chain cutting. The controller also features bag-counting and thread-chain length adjustment functions after sewing, making operation more convenient.
Operating Process:
Operating Process: The machine is installed on a conveyor. When a filled woven bag reaches approximately 10 cm from the sewing machine, the photoelectric sensor automatically starts the machine to sew the bag opening. After each bag is sewn, the cutter automatically cuts the thread chain and the sewing machine stops automatically.
Brand | SHIPENG |
Model | GK35-6AS |
Sewing Speed | 2000 r.p.m. |
Sewing Thickness | 8 mm |
Stitch Length Range | 6.5–11 mm |
Stitch Type | Double-Thread Chain Stitch 401 |
Thread Type | Cotton Thread / Polyester Thread |
Presser Foot Lift | 0–15 mm |
Needle Model | 80800C×200#–250# |
Pulley Diameter | φ90 mm |
Thread Chain Cutter | Photoelectric Control, Automatic Thread Cutting |
Start / Stop | Photoelectric Sensor Control, Automatic Start / Stop |
Auxiliary Functions | Automatic Counting, Thread Chain Length Adjustment After Sewing |
Motor Power Requirement | Not Less Than 370 W |
Net / Gross Weight | 30 kg / 33 kg |
Packing Dimensions | 50 cm × 50 cm × 35 cm |
