Product Introduction:

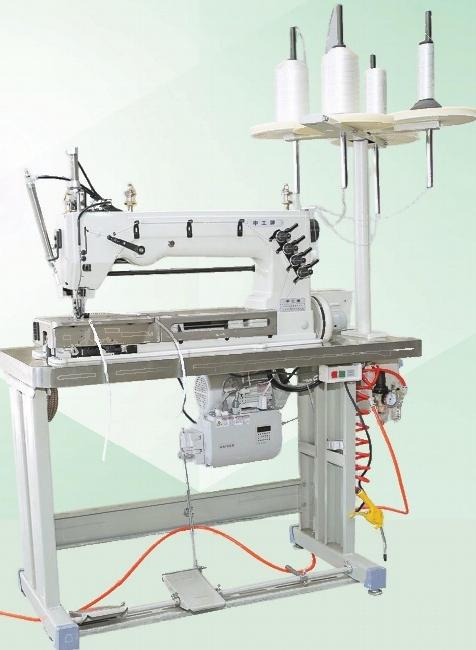

This series is available in single-needle and double-needle models. It adopts synchronized upper and lower feeding and an automatic circulating lubrication system, providing single-needle two-thread and double-needle four-thread chain stitching. The machine is driven by a servo motor and equipped with pneumatic presser foot lifting and hot-knife thread cutting. Featuring a flat-bed design and a large working area (534 × 160 mm), the machine operates smoothly and offers flexible operation. It is especially suitable for sewing large FIBCs and their reinforcing straps.
Product Specifications
Brand | SHENGONG |
Model | 80800 |
Maximum Speed | 2000 rpm |
Operating Speed | 1800 rpm |
Stitch Density | 11–16 Stitches/100 mm |
Maximum Sewing Thickness | 10 mm |
Needle Model | DR2*26 |
Thread Specification | 21s Polyester Thread |
Feeding Method | Synchronized Upper and Lower Feed |
Motor Specifications | Servo Motor, 220 V, 550 W |
Lubrication Method | Drip Oil Cup and Automatic Lubrication |
Working Space | 524 × 160 mm |
