Product Introduction:

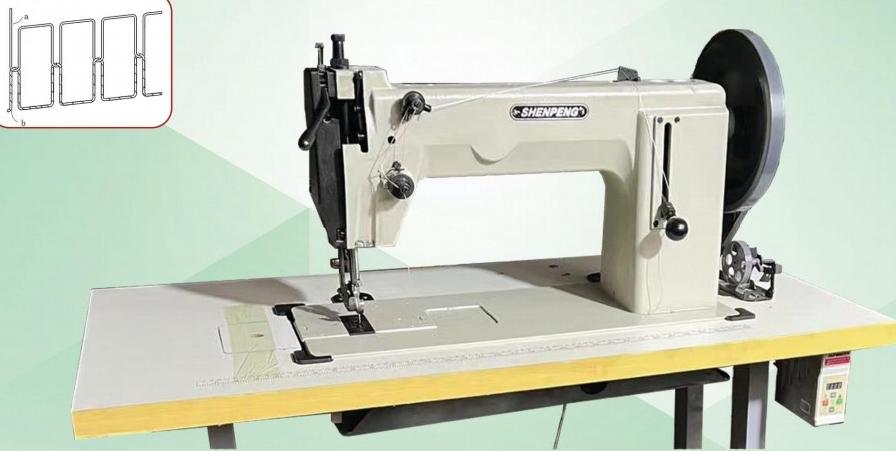

The GB182 adopts a large oscillating shuttle hook and synchronized feeding system, providing strong heavy-duty sewing capability and forming a two-thread lockstitch. The standard presser foot lift is 20 mm. For special applications, the maximum presser foot lift can be adjusted up to 32 mm, allowing the machine to sew products up to 30 mm thick. This model produces neat and attractive stitches, offers a large thread capacity, and features a cylinder-bed structure. It is mainly suitable for sewing medium- and heavy-duty products such as felt, lifting straps, and saddles.
Product Specifications
Brand | SHENGONG |
Model | GB182 |
Stitch Length | 0–12 mm |
Sewing Speed | 700 Stitches/Minute |
Presser Foot Lift | 14–32 mm |
Working Space | 200 × 420 mm |
Needle Model | 8×250-300 |
Motor Power | 550 W, 1400 rpm |
Machine Head Net Weight | 105 kg |
Needle Bar Stroke | 70 mm |
Stitch Type | Lockstitch |
