Product Introduction:

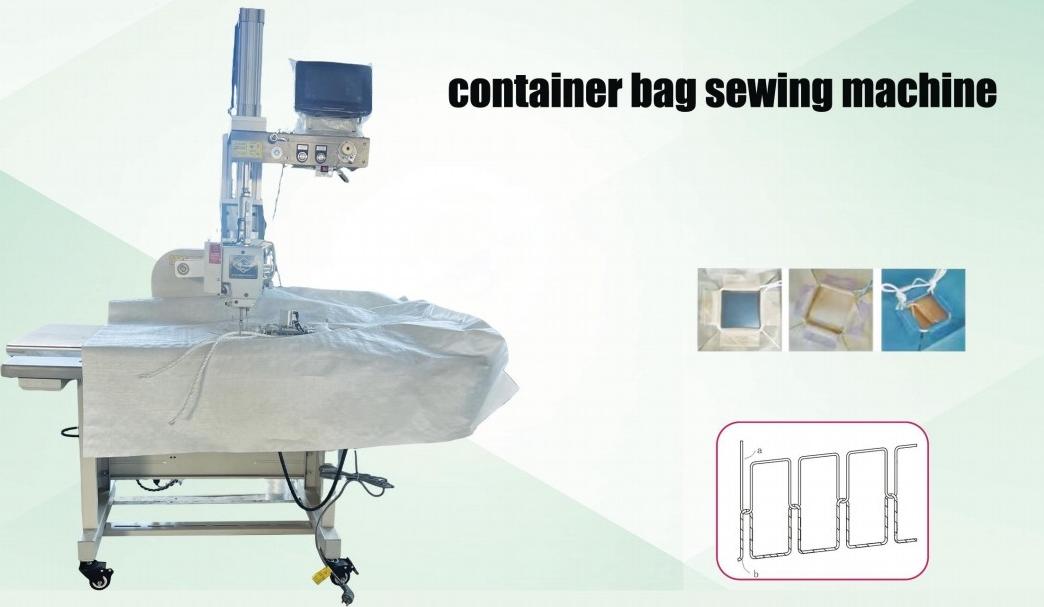

Application: Specially designed for sewing the upper and lower filling/discharge spouts of FIBCs.
Functions: Thread cutting, automatic corner turning, automatic backstitching, pattern enlargement and reduction, pattern copying, and voice prompts.
Performance Advantages: The machine head lifting height is 10 cm. The cross-shaped discharge spout size is adjustable from 10–12 cm, and the cross-shaped corner size is adjustable from 30–80 cm.
Product Specifications
Brand | SHENGONG |
Model | SG3020 |
Sewing Area | 300 × 200 mm |
Sewing Speed | 2–2800 rpm |
Stitch Type | Single-Needle Lockstitch |
Rotary Hook Type | Triple-Capacity Rotary Hook |
Stitch Length | 0–12.7 mm |
Needle Model | DPX17 |
Outer Presser Foot Lift | 10 mm |
Needle Bar Stroke | 40 mm |
Pattern Storage | LCD Screen (External USB Drive) |
Voltage | 220 V |
Air Pressure | 0.5 MPa |
