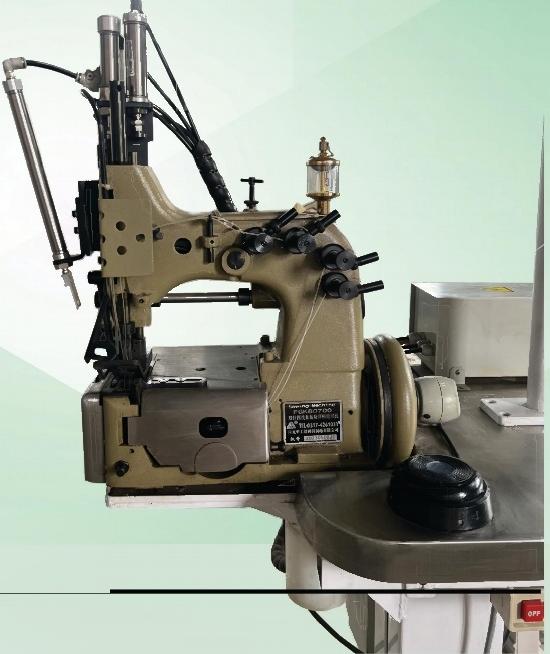

Product Introduction:
The 80700CD4 adopts a double-needle four-thread chain stitch. Its component design provides a larger sewing area, allowing smooth sewing of FIBCs while simultaneously attaching leak-proof strips. The overall machine structure and laminated frame installation make it particularly suitable for sewing FIBCs equipped with upper and lower leak-proof strips as well as top and bottom filling/discharge spouts. In addition to an electrically controlled presser foot lifting function, the machine is also equipped with an electrically controlled heated thread-chain cutter.
Product Specifications
Brand | SHENGONG |
Model | 80700CD4 |
Stitch Specification | (401.401)SSa-2 |
Needle Spacing | 7.2 mm (18 ga) |
Maximum Sewing Thickness | 18 mm |
Standard Needle | 9848G300/120 |
Stitch Length | 6.5–14 mm |
Standard Setting | 12 mm |
Handwheel Diameter | 150 mm |
Maximum Sewing Speed | 1400 Stitches/Minute |
